MOST UNIVERSAL FABRIC DRYING MACHINE

FUNCTION : DRYING AND SETTING

THE INDIAN TEXTILE INDUSTRY (PROCESSING IN PARTICULAR FOR WOVEN) HAS RAPIDLY TRANSFORMED INTO THE BENCHMARKING AND APPLICATION OF MODERN TECHNICAL SPECS TO MATCH AND CONFIRM TO EVER HIGHEST NORMS PREVAILING IN THE GLOBAL MARKET. SUBSEQUENTLY, EFFORTS ARE DIRECTED IN THE SEARCH OF EXCELLENT TECHNOLOGY AND MACHINE. THOSE EXCELLENT AND CRITICAL FEATURES MUST BE INTEGRATED AND COUPLED ALONG ALL TECHNICAL ASPECTS IN THE AREA OF DELIVERABLE DESIRED LEVEL OF PERFORMANCE IN WET PROCESSING.

THIS CONTEMPORARY BUT COMPULSIVE THINKING SURELY LEAD US TOWARDS CREATIVE DESIGNING OF NEWER MODELS.

ONE SUCH KEY MACHINE OF INDISPENSABLE NEED IN FINAL STAGES OF PROCESSING OF WOVEN PRODUCT LINE IS STENTER. THE PERFORMANCE OBTAINED WITH A STENTER DEPENDS ON THE SPECIFIC NOVEL AND DYNAMIC DRYER DESIGNS. DUE TO EXORBITANT RISE IN THE ENERGY AND LABOUR COST CLUBBED WITH CUMULATIVELY GROWING PRESSURE OF COSTS IN ALL AREA OF TEXTILE PRODUCTION, OUR DEVELOPMENT EFFORTS IN THE STRETCHLINE STENTER

MANUFACTURING IN RECENT YEARS HAVE BEEN SHIFTED TOWARDS NEW UNDER MENTIONED OBJECTIVES, WHICH TILL RECENTLY WERE OVERLOOKED BY THE MANUFACTURER.

IT HAS BEEN NOTICED THAT LOT OF MOISTURE IS EVAPORATED. IN THE FIRST FIELD (CHAMBER) DUE TO SUFFICIENT SURFACE MOISTURE AVAILABLE FOR EVAPORATION. AND LITTLE IN THE LATER FIELDS AS MOISTURE TO BE EVAPORATED THAT FIRST HAS TO DIFFUSE ON TO THE SURFACE FROM CARE. HOWEVER IT IS EQUALLY IMPORTANT TO CONSIDER THE EXHAUST AIR MOISTURE LEVELS TO 160 TO 180G H2O/KG DRY AIR.

FOURWENTS STRETCHLINE OFFERS SUCH MACRO LEVELS OF STUDY AND CONTROL THE SAME TO OPTIMUM LEVEL. DEVELOPMENT EFFORTS ARE INITIATED FOR IMPROVING THE RANGE UTILIZATION FOR CONTINUOUS OPERATION DURING ARTICLE CHANGE, THAT IS TO AVOID IDLE TIME BY USING J-BOX AND NONSTOP WINDERS WHILE BATCH CHANGE. IT ALSO INTRODUCES A SYSTEM FOR MINIMUM DOWN TIME BY DESIGNING FACILITY OF TANDEM FILTER SHEAVES /SCREENS SLOTS THAT ELIMINATE THE EXTRA CLEANING TIME WITHOUT AFFECTING THE OPERATION.

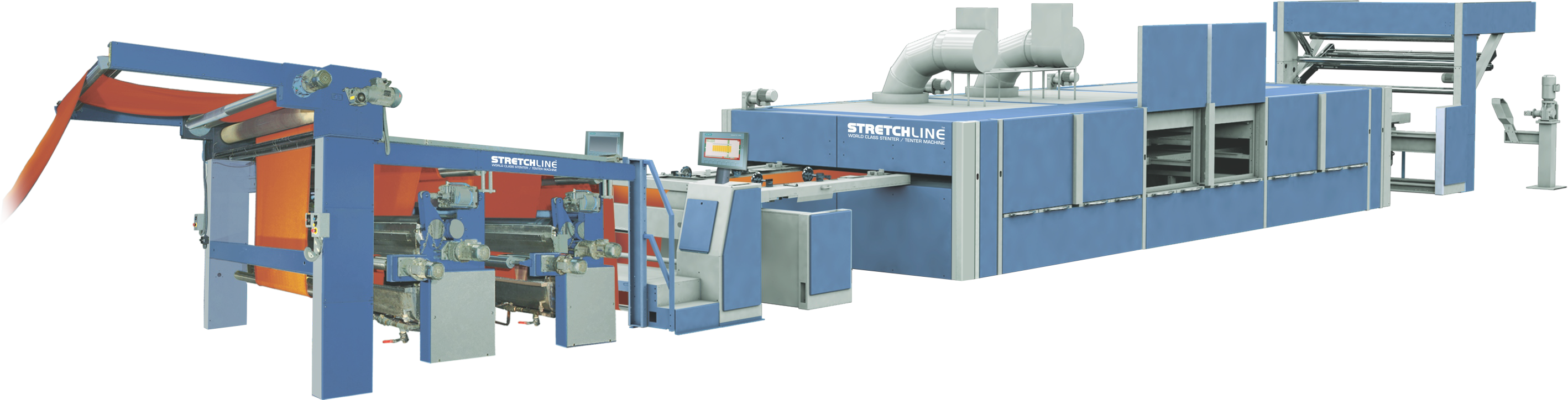

TYPES OF PROCESS OF ‘FOURWENTS’ STRETCHLINE-llOO STENTER MACHINE

  • DRYING
  • FINISHING
  • HEAT SETTING ETC.
  • BATCHING
  • COATING & DRYING

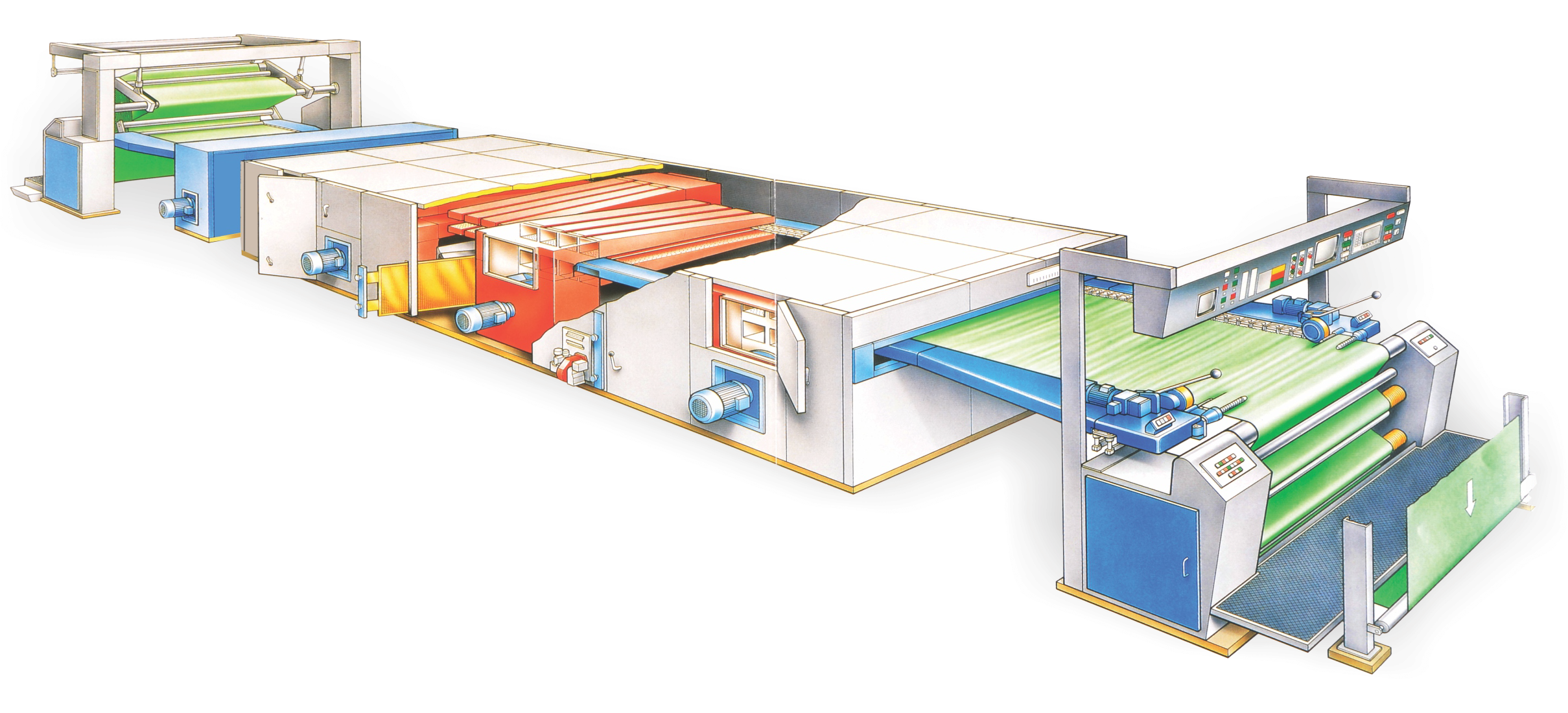

THEME & BACKGROUND OF STRETCHLINE - 1100

THEME

THE STENTER IS THE MOST IMPORTANT MACHINE IN TEXTILE , BECAUSE ALMOST EVERY FABRIC PASSES AT LEAST ONCE THROUGH A STENTERING MACHINE. NOT ONLY ARE THE ATTAINABLE DRYING RESULTS IMPORTANT, THE INDIVIDUAL ELEMENTS OF THE MACHINE MUST ALSO ENSURE THE QUALITY OF THE FINISHED FABRICS. IN OTHER WORDS THE INTENSITY OF ITS EXPOSITION TO AIR AND THE UNIFORMITY OF HEAT TRANSFER AND TEMPERATURE MUST BE JUST BALANCED. THE WISH LIST & NEED OF THE PRESENT TIME BY ALL FINISHERS IS, “ TO ACHIEVE VERY HIGH EVAPORATING CAPACITY WITH LOW ENERGY REQUIREMENTS.”

TO CONFER OR ENHANCE ATTRIBUTES REQUIRED FOR EXCELLENT PERFORMANCE IN WOVEN FOR ITS INTENDED END - USE BY MEANS OF CHEMICAL TREATMENT FROM AN AQUEOUS BATH.

BACKGROUND

IT IS RARELY POSSIBLE TO ACHIEVE ACCEPTABLE LEVEL OF SETTING IN THE FABRIC FOR FINAL GARMENT MAKING WITHOUT STENTERING OPERATION. STENTER IS FINAL “ GATEWAY ” TO THE TECHNICAL PROCESS SEQUENCE OF “FIBRE TO FINISH” MANUFACTURING.

A STENTER IS USED FOR THERMAL TREATMENT OF TEXTILE FABRIC IN OPEN WIDTH CONDITION. THIS MACHINE HOLD THE BOTH SELVEDGE SIMULTANEOUSLY AND CONTINUOUSLY, CARRIES IT FROM ONE POINT TO OTHER. TWO ENDLESS CHAINS EQUIPPED WITH EITHER CLIPS OR PINS HOLD THE SELVEDGE.

IN THE CHAIN OF PROCESS LINE, STENTERING OPERATION ACQUIRES SIGNIFICANT PLACE AS INDOMITABLE AND UNDISPUTED EQUIPMENT WHICH CONTRIBUTES FOR FINAL SHAPING OF TEXTILES.

SOME SALIENT FEATURES WORKED OUT AT ‘FOURWENTS’ STRETCHLINE

  • LUBRICATION FREE CHAIN TRACKS AND ITS ELEMENTS USED CAN RUN WITHOUT MAINTENANCE.
  • NORMALLY GRAPHITE TRACKS ARE RECOMMENDED.
  • INCREASE AUTOMATION LIKE STENTOMATEX.
  • DATA LOGGING SYSTEMS THROUGH MICROPROCESSOR AND TOUCH SCREEN-HMI.
  • AUTOMATIC PARAMETER SETTING UP SYSTEMS.
  • ATTACHMENT OF WEB CONTROL SYSTEMS LIKE BIANCO / MAHLO AS PER CUSTOMERS CHOICE.
  • PROCESS CONTROL SYSTEMS ARE THE KEY FACTORS OF FOURWENTS STENTER.

THE ESSENTIAL CHARACTERISTICS OF
‘FOURWENTS’ STRETCHLINE-llOO STENTER MACHINE

  • OVERFEEDING.
  • DRYING OF WATER & APPLIED CHEMICALS. HEAT SETTING OF POLYESTER / THERMOPLASTIC FIBERS,
  • LYCRA FIBERS, COTTON, KNIT FABRIC & DENIM.
  • TO ESTABLISH DIMENSIONS OF WIDTH AT FINAL STAGE.
  • WEFT STRAIGHTENING / EDGE UNCURLING DURING DRYING
  • AND FINISHING.
  • APPLICATION OF TOPICAL FINISHING CHEMICALS AS PER THE CASE OF WRINKLING, SOFTENING ETC.
  • EFFICIENT & UNIFORM DRYING - MIGRATION FREE.
  • STRETCHING THE FABRIC IN BOTH DIRECTIONS POSSIBLE.
  • DELICATE FABRIC PRONE TO DAMAGE IF SQUEEZED BETWEEN BOWLS OF A MANGLE AND CAN BE DRIED AND FINISHED ON STENTER.
  • DIP AND NIP SYSTEM SUITABLE TO A MODERATE LEVEL OF WET PICK UP SO AS TO MAKE SUCCESSFUL EASY CARE FINISHES WITH EACH FIBRE REACTED PROPERLY.
  • STENTER DRYING IS PROVIDING AN IDEAL OPPORTUNITY FOR WEFT STRAIGHTENING BY APPROPRIATE MECHANISM PROVIDED AT ENTRY END.
  • ELECTRONIC WEFT STRAIGHTER. WRINKLING, SOFTENING ETC.
  • CONVICTION DRYING DOESN’T MAKE THE FABRIC FEEL HARSHER COMPARED TO CONDUCTION.

WOVEN FABRICS

WOVEN, LINEN & DENIM FABRICS
  • SUITINGS
  • SHIRTINGS
  • DENIMS
  • BED SHEETS
  • CURTAINS
  • TERRY TOWELS
  • SAREES
  • DRESS MATERIALS
  • HOME TEXTILES
Read More

KNITTED FABRICS

  • PLAIN SINGLE JERSEY KNITTED FABRICS
  • INTERLOCK KNITTED FABRICS
  • PURL KNITTED FABRICS
Read More

TECHNICAL TEXTILE

  • AUTOMOTIVE FURNISHING FABRICS
  • AEROSPACE APPLICATION FABRICS
  • CONSTRUCTION APPLICATION FABRICS
  • DECORATIVE FURNISHING FABRICS
  • ENGINEERING & PACKAGING FABRICS
  • TECHNICAL APPAREL
  • SPORTS & LEISURE
  • MEDICAL & HYGIENE APPLICATIONS
  • FLAME PROOF FABRICS
  • WATER PROOF FABRICS
  • COATINGS OF NON WOVENS FOR AUTOMOBILES ( TYRE CORDS, SEAT COVER, CLADDING, INSULATING )
Read More

WORLD CLASS STENTER / TENTER MACHINE

VARIOUS TYPES OF MODULAR SYSTEMS

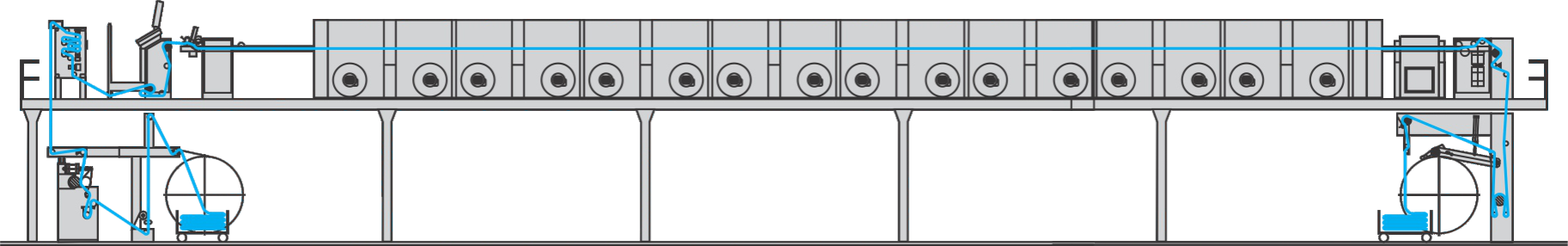

STENTER TYPE – A

UNIVERSAL STENTER FOR DRYING AND DUAL PROCESSES, WHILE THE CORRESPONDING CONFIGURATION CAN BE USED FOR PRACTICALLY ALL TYPES OF FABRIC.

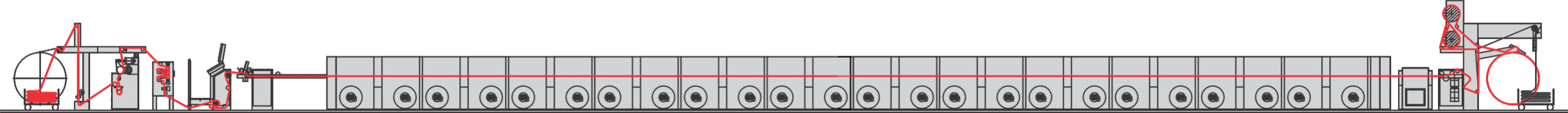

STENTER TYPE – B

STENTER DUAL PROCESSES, E.G. HEAT-SETTING, CURING.

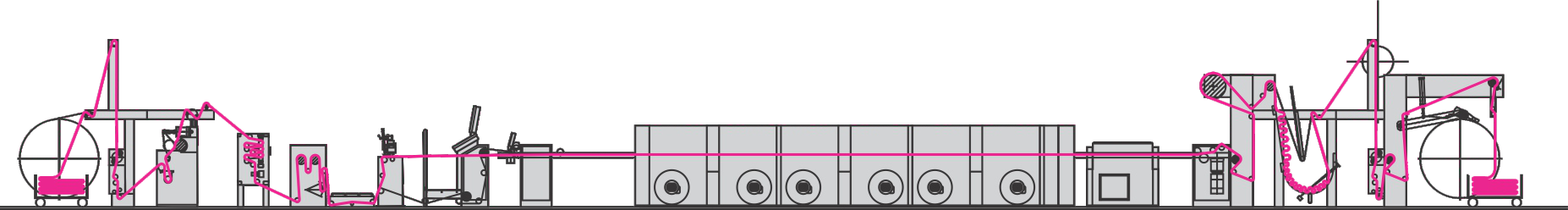

STENTER TYPE – C

WITH INTEGRATED COATING UNIT, E.G. FOR FINE COATING OF FLAT FABRICS AND THREAD ANCHORING OF PLUSH ARTICLES.

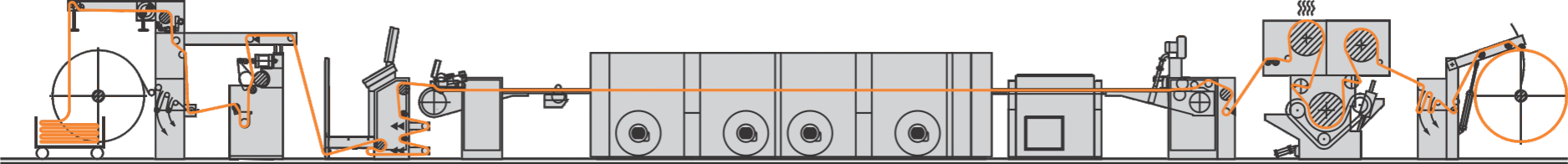

STENTER TYPE – D

WITH INFRARED PRE-DRYER FOR PIGMENT DYEING.

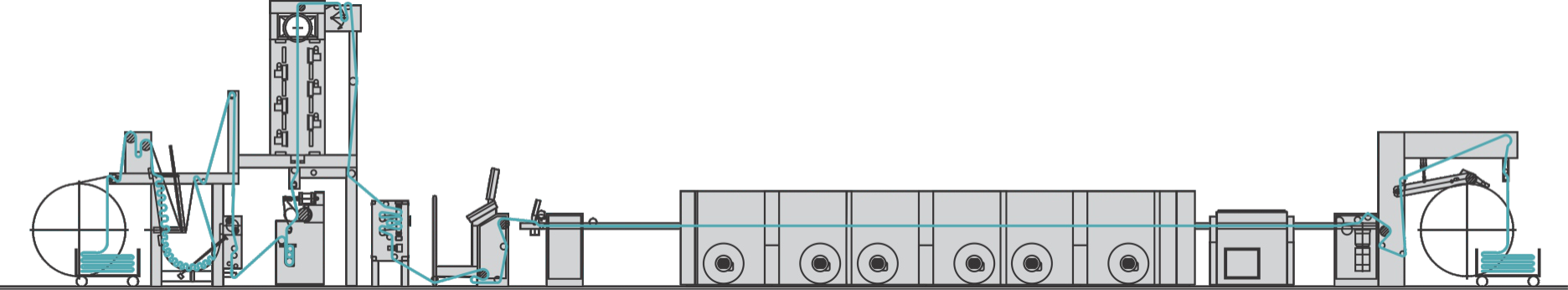

STENTER TYPE – E

FOR UNIVERSAL FINISHING OF WOVEN AND KNITTED FABRICS. IDEAL FOR PRETREATMENT PRIOR TO PRINTING.

WORLD CLASS STENTER / TENTER MACHINE

TWO BOWL & THREE BOWL PADDER

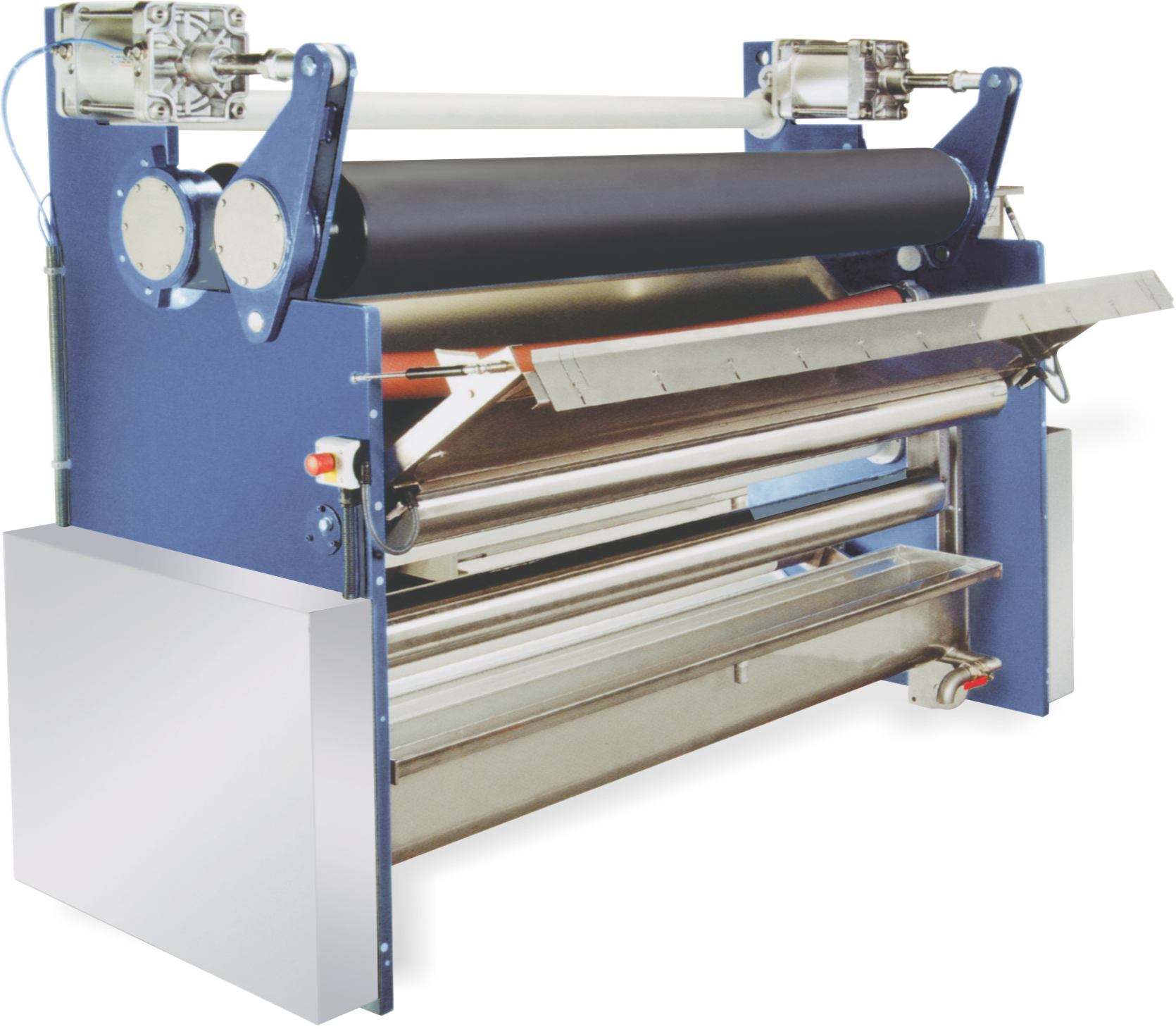

TWO BOWL PADDER

  • IDEALLY SUITED FOR DEWATERING AND FINISHING PROCESSES FOR WOVEN AND KNITTED FABRIC, SOLID / HOLLOW ROLLERS WHICH HELPS TO ACHIEVE UNIFORM PRESSURE THROUGHOUT THE ROLLER WIDTH.
  • BOW ROLLER BEFORE NIP FOR WOVEN FABRIC.
  • PNEUMATICALLY LIFTED AND LOWERED SS TROUGH.
  • PADDER ROLLER CLEANING ARRANGEMENT IS PROVIDED.
  • DRIVEN SCROLL ROLLER BEFORE DIP AND BEFORE NIP FOR KNITTED / DELICATE FABRIC.
  • DRIVEN IMMERSED ROLLER IS ALSO AVAILABLE ON REQUEST.
  • PNEUMATIC COMPENSATOR OR LOADCELL IS PROVIDED FOR PADDER SPEED CONTROL.
  • JACKETED TROUGH WITH AND WITHOUT TEMPERATURE CONTROLLER IS ALSO AVAILABLE ON REQUEST.
  • LEVEL CONTROLLER AND DOSING TANK WITH STIRRER ARE ALSO AVAILABLE ON REQUEST.

THREE BOWL PADDER

  • SUITED FOR DEWATERING AND FINISHING PROCESSES FOR WOVEN FABRIC.
  • SOLID / HOLLOW CYLINDRICAL SQUEEZE ROLLERS HELPS TO ACHIEVE UNIFORM PRESSURE THROUGHOUT THE ROLLER WIDTH.
  • PNEUMATICALLY LIFTED AND LOWERED SS TROUGH.
  • PNEUMATIC COMPENSATOR OR LOADCELL IS PROVIDED FOR PADDER SPEED CONTROL.
  • BOW ROLLER BEFORE NIP FOR WOVEN FABRIC
  • LEVEL CONTROLLER AND DOSING TANK WITH STIRRER ARE ALSO AVAILABLE ON REQUEST.

AVAILABLE SHORE HARDNESSES

  • 85 SHORE A
  • 93 SHORE A
  • 100 SHORE A
  • 80 SHORE A PU
  • 95 SHORE A PU
NB in cm LIQUOR TROUGH CONTENT IN LITRES CROWNED ROLLER SYSTEM EVEN PRESSURE ROLLER SYSTEM
Minimum Litre Line pressure with standard crown for 8t pressing force Crown possible for max. pressing force Line Pressure Range Max. Pressure Range
180 44 24 89 40 53 61 6,9 [daN/cm [t] [daN/cm] [t]
200 49 26 98 43 58 67 7,6 44 12 Oct-66 12
220 54 29 108 46 63 74 8,3 40 12 Oct-60 12
240 59 31 118 49 69 81 9,1 36 12 Oct-54 12
260 64 34 127 52 74 88 9,8 33 12 Oct-50 12
280 69 36 136 55 79 94 10,2 30 12 Oct-46 12
300 74 39 146 59 84 100 11,3 28 12 Oct-42 12
320 79 41 155 62 89 106 12,0 26 12 Oct-40 12
340 84 44 165 65 94 112 12,5 25 10 Oct-37 12
360 89 46 175 68 100 119 13,5 23 8 Oct-35 12
380 94 49 184 71 105 126 14,2 − − Oct-33 12
Immersion path / m 560 560 850 850 990 1400   − − Oct-31 12

WORLD CLASS STENTER / TENTER MACHINE

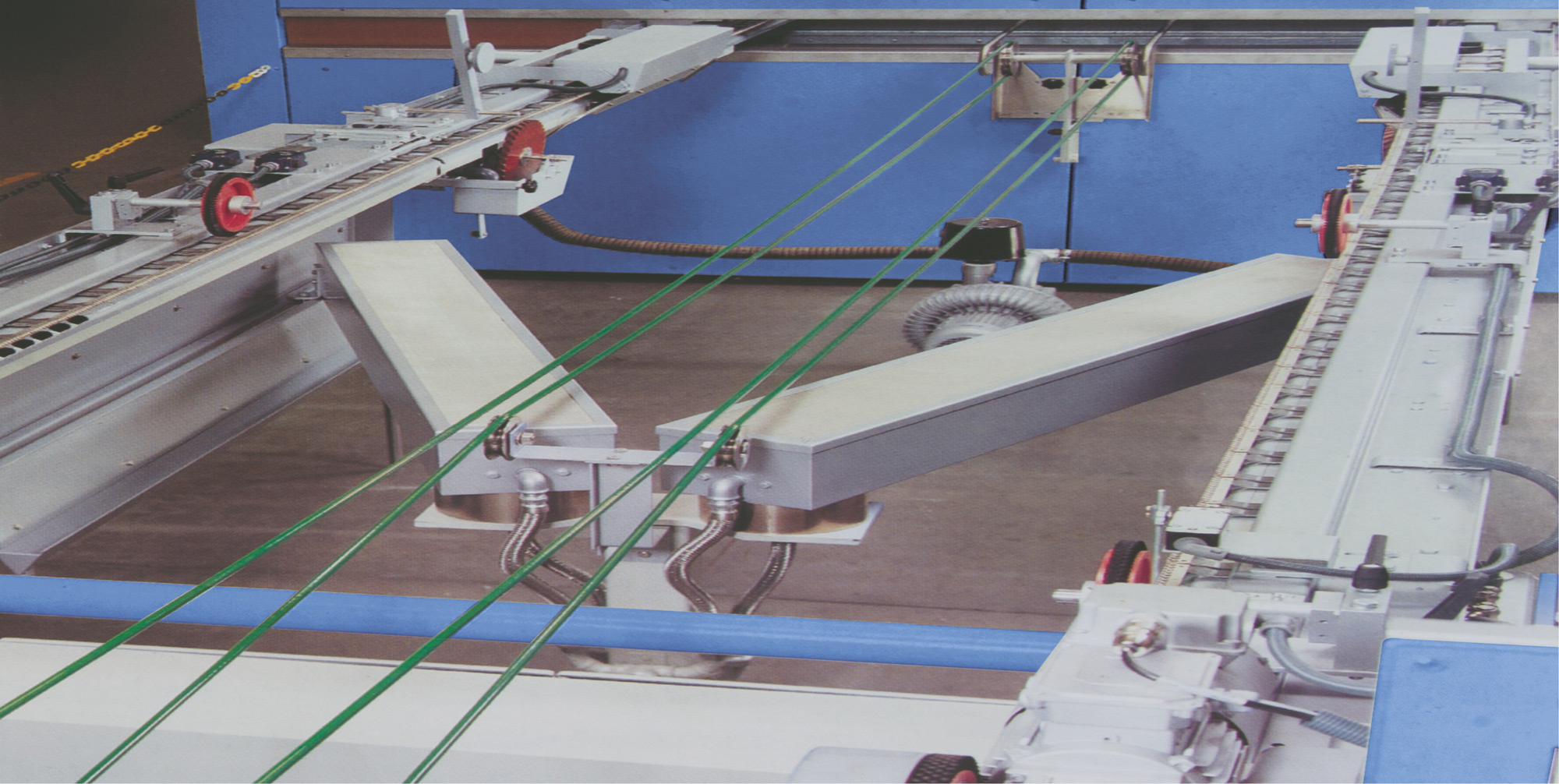

STEAMING DEVICE

ADJUSTS AUTOMATICALLY TO THE FABRIC WIDTH.
SUPPORTING CABLE IN THE MIDDLE USED WITH ELASTIC FABRICS.

SELVEDGE GLUEING DEVICE

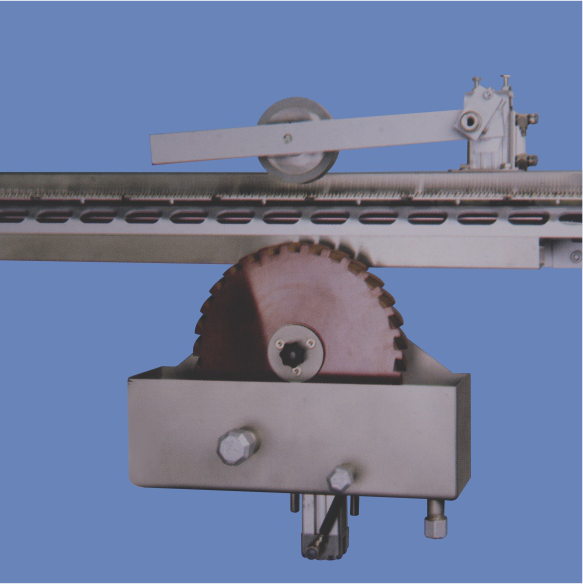

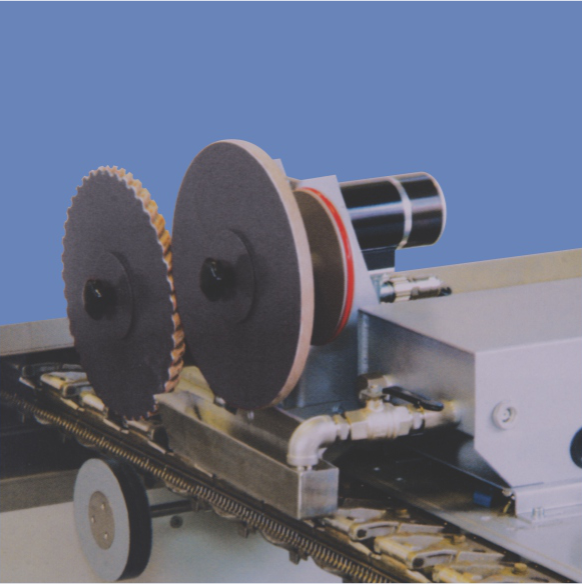

SELVEDGE GLUEING UNIT

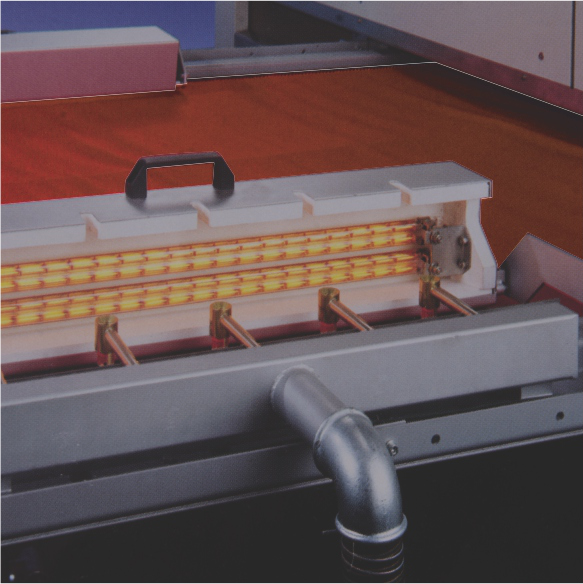

GLUE FLUE

UNCURLING DEVICE & ROLLERS

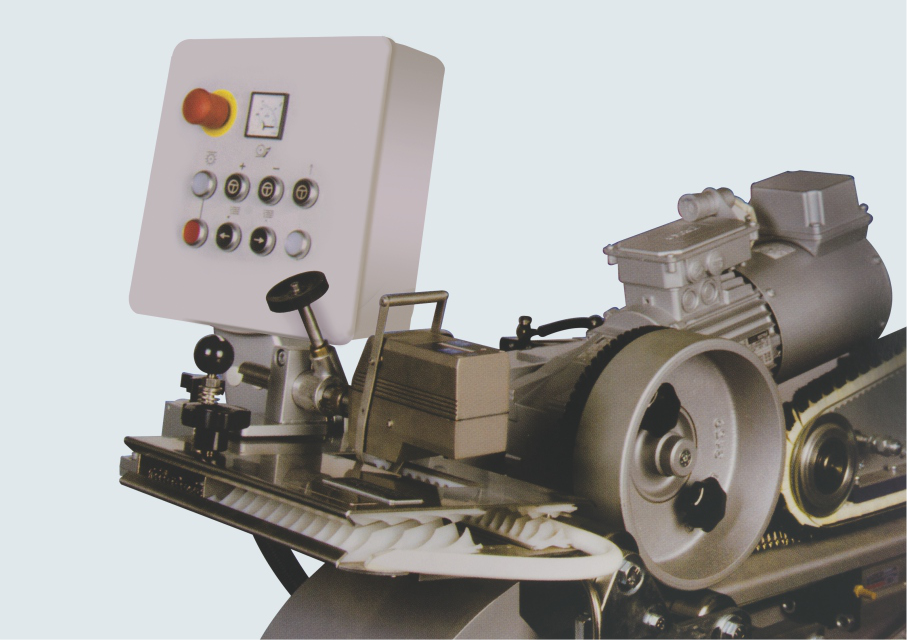

UNCURLING DEVICE TANDEMATIC SYSTEMS

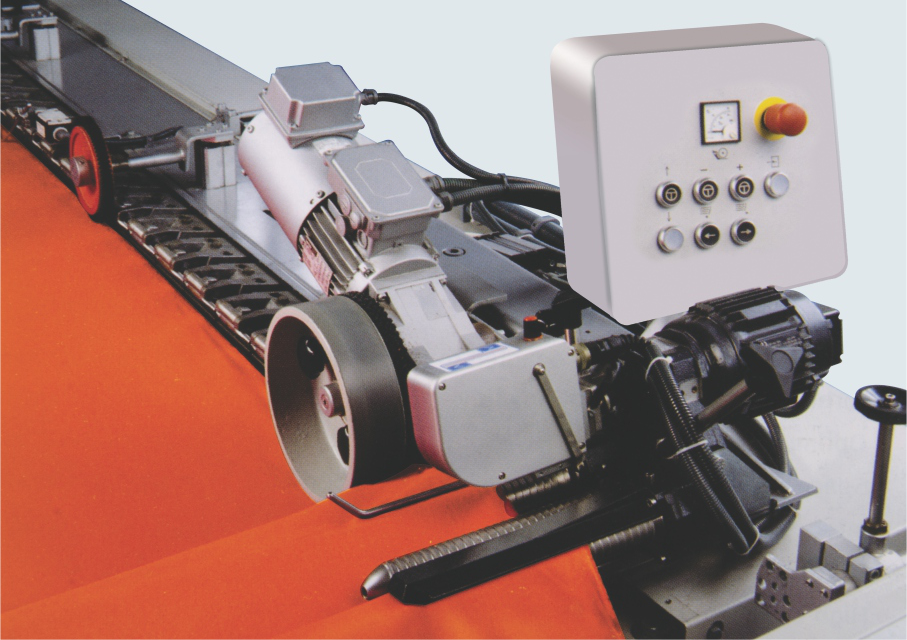

UNCURLING ROLLERS WITH DRIVEN SPINDLES

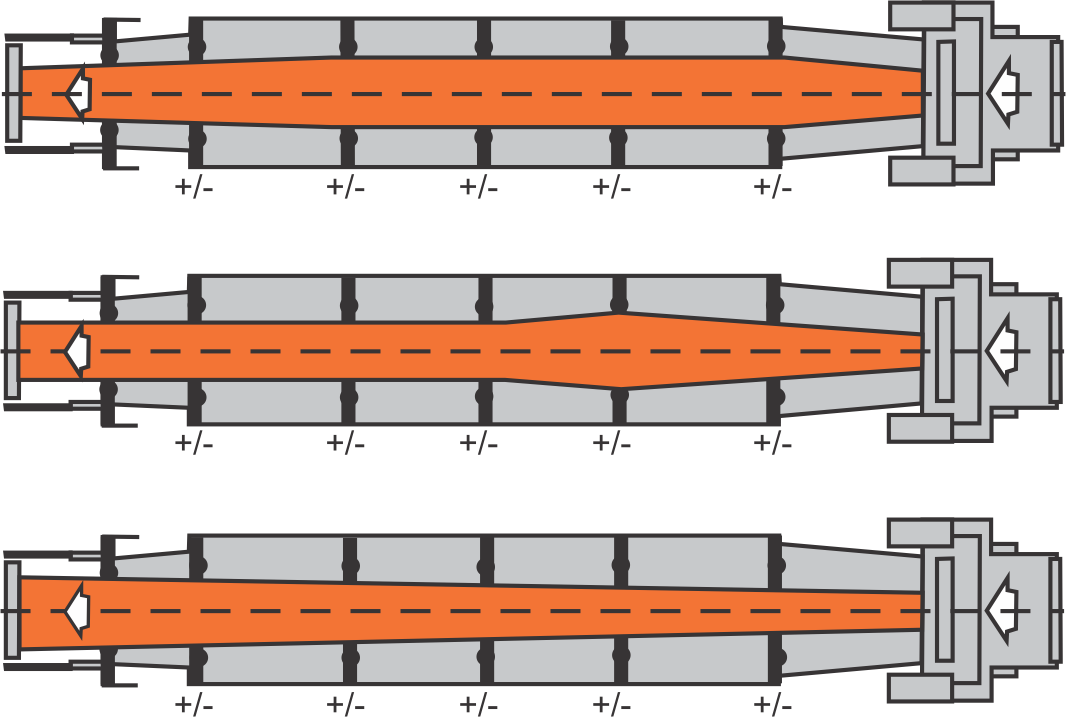

CHAIN TRACK ADJUSTMENT

  • EACH SPINDLE IS DRIVEN BY A SEPARATE MOTOR. ANY DESIRED WIDTH ADJUSTMENT THROUGH THE ENTIRE MACHINE CAN BE PROGRAMMED AND AUTOMATICALLY SET FROM A CENTRAL LOCATION.

THERMO ( CHAMBER ) CONFIGURATION

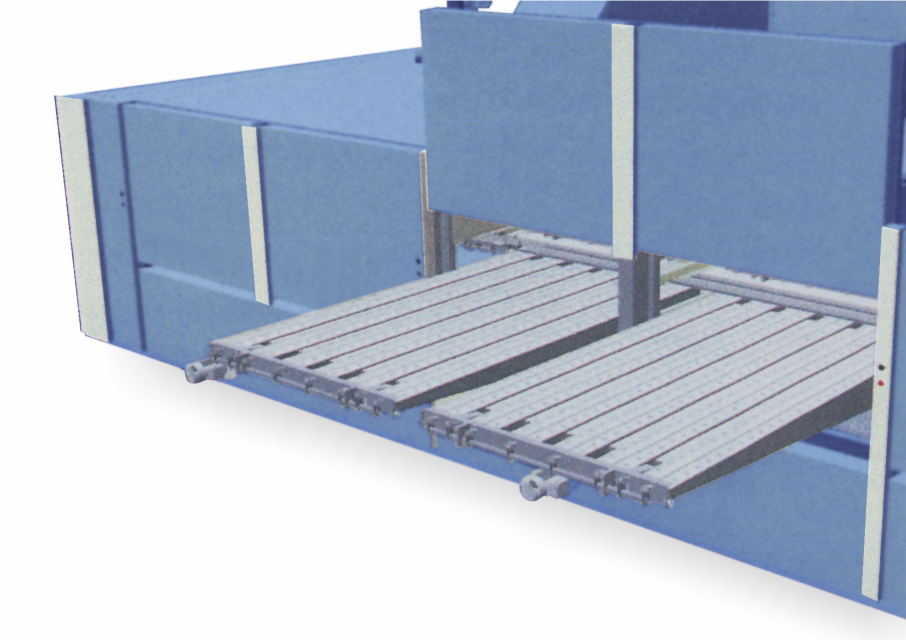

NOZZLE SYSTEM

  • “LAY-ON-AIR” FABRIC SUPPORTING PROPERTIES WITH BULKING EFFECT THROUGH INCREASED VOLUME.

ADVANTAGES

  • HIGHER EVAPORATION RATES.
  • GENTLE HEAT TREATMENT.
  • CONTINUOUS FABRIC SUPPORT EVEN AT THE CHAMBER TRANSITION POINTS.
  • REDUCED ENERGY INPUT.
  • ATTRACTIVE COST / BENEFIT RATIO IS POSSIBLE DUE TO FASTER AIR
  • TRANSPORT WITH MICROTUMBLER EFFECT.

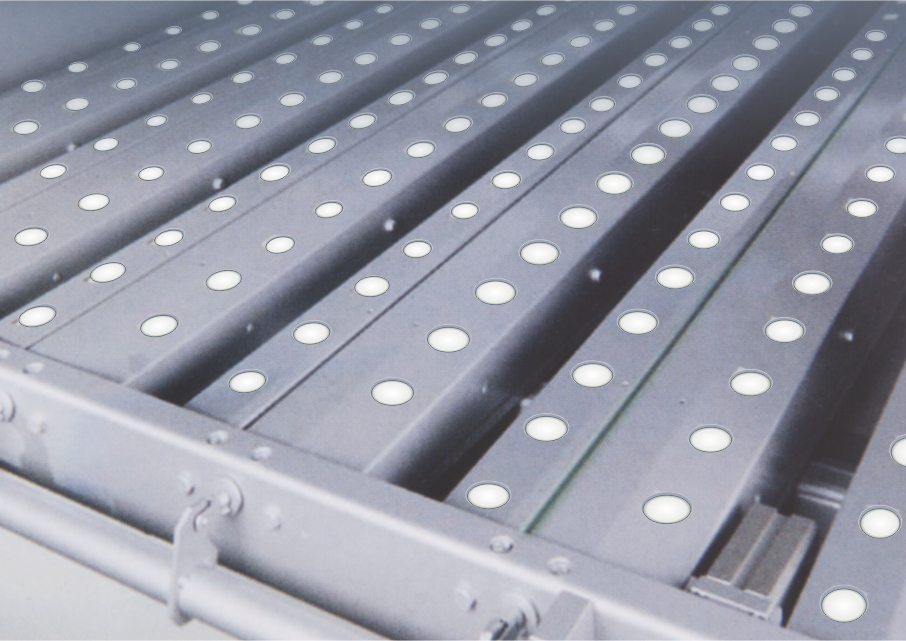

COMBINED ROUND AND SLOT NOZZLES

  • THE NEW SLOT NOZZLE SYSTEM FOR HIGH-PILE AND TERRY CLOTH FABRICS. ALSO SUITABLE FOR DYEING PROCESSES ON THE STENTER.

J BOX , SELVEDGE TRIMMER & CUTTER

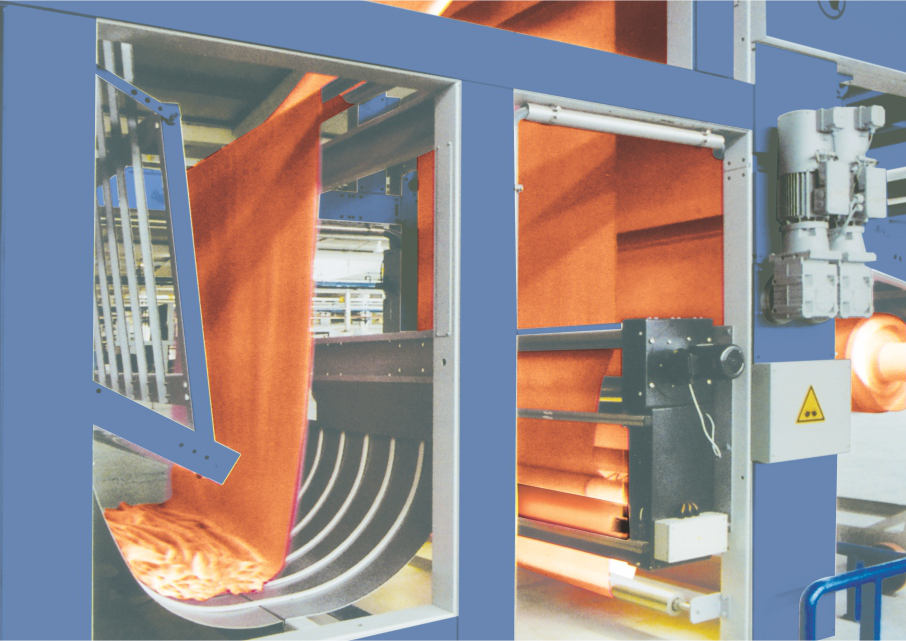

J BOX

  • FOR UNINTERRUPTED MACHINE OPERATION. WITH OPTO

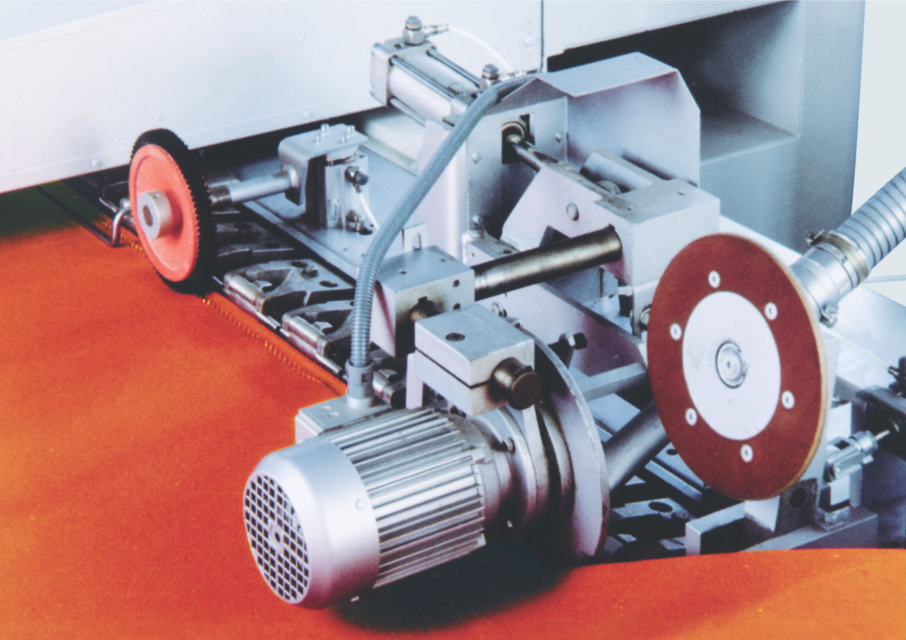

SELVEDGE TRIMMER E+L

  • CAN BE RAISED AND LOWERED PNEUMATICALLY. MINIMAL SELVEDGE TRIMMING FOR VERY LOW FABRIC WASTE. WITH A POWERFUL SUCTION MECHANISM

SELVEDGE CUTTER E+L

  • OPTO-ELECTRONIC CONTROL WITH PNEUMATIC SPREADING SUPPORT WITH HARD WEARING SCISSOR CUT PRINCIPAL FOR MINIUM SELVEDGE CUT-OFF. SELVEDGE CUT-OFF CAN BE REDUCED BY UPTO 60% IN COMBINATION WITH LASER.

HORIZONTAL TRANSPORT TRACK / SLIDING RAIL / CHAIN

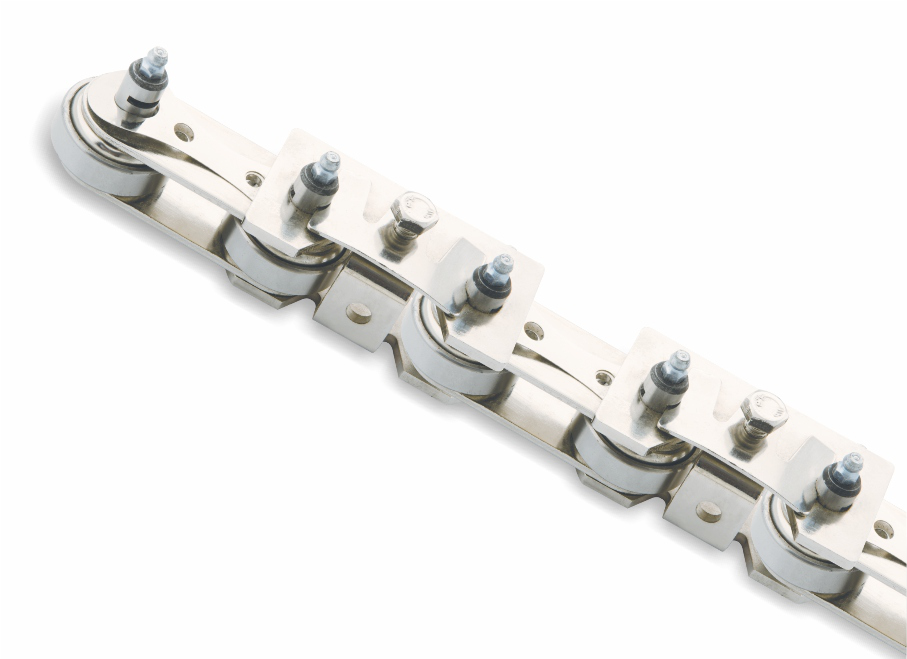

HORIZONTAL CHAIN

  • SPECIAL LONG-TERM LUBRICATED ROLLER BEARING CHAIN (REQUIRES LUBRICATION ONCE A YEAR OR EVEN LATER) CHAIN WITH FULLY ENCAPSULATED BALL BEARINGS AVAILABLE AS PIN CHAIN, CLIP CHAIN AND COMBINED PIN & CLIP CHAIN DESIGN.
  • PIN CHAIN WITH FABRIC PROTECTION FLAP CAN BE SUPPLIED ON REQUEST FOR KNITTED FABRIC.
  • OIL CUPS TOTALLY ELIMINATED HENCE NO POSSIBILITY OF FABRIC STAINING & DRIPPING.
  • INDIVIDUALLY DRIVEN MAIN CHAIN WITH DIRECT DRIVE FOR LH & RH SIDE.

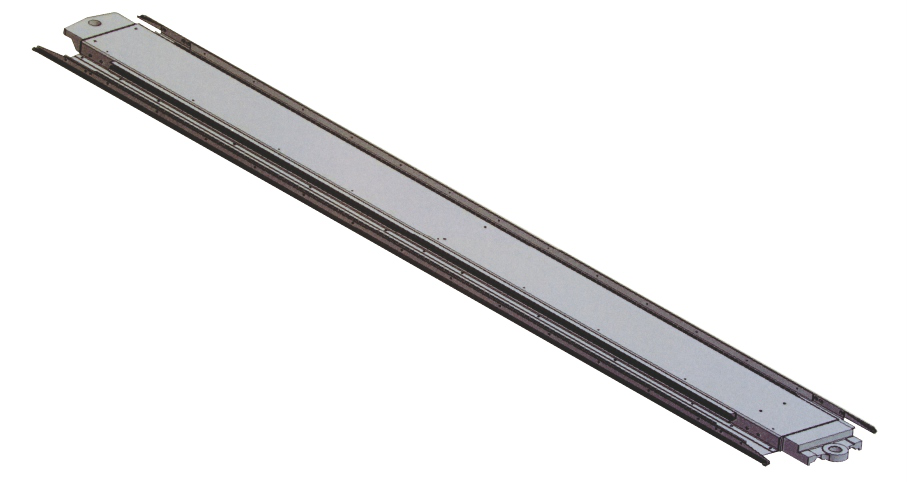

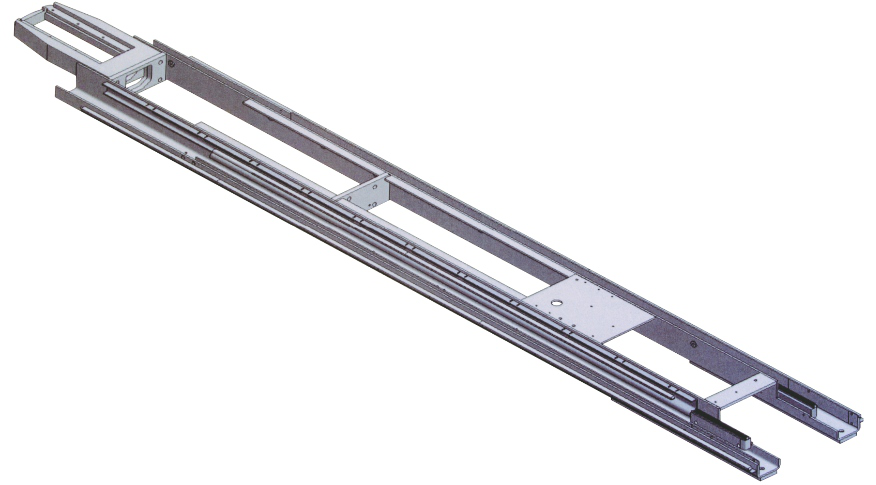

TRACK / SLIDING RAIL

  • STEEL FABRICATED TRACK WITH GRAPHITE RAIL.
  • SPECIAL SHOCK ABSORBERS ARE PROVIDED FOR SMOOTH TURNING OF THE CHAIN.
  • LESS FRICTION AS GRAPHITE IS SELF LUBRICATING MATERIAL.
  • SPECIAL CHAIN AND TRACK DESIGN LEADS TO RUNNING SPEEDS UP TO 150 M / MIN.
  • HIGHER CROSS TENSION CAN BE APPLIED TO FABRIC COMPARED TO TRADITIONAL CHAIN.

TRACK / SLIDING RAIL

  • LOW MAINTENANCE, FREE FROM OIL SPILLAGE AND HIGHER SPEED.
  • SIGNIFICANT ENERGY SAVING DUE TO ROLLING CHAIN AND GRAPHITE RAIL (LESS FRICTION)

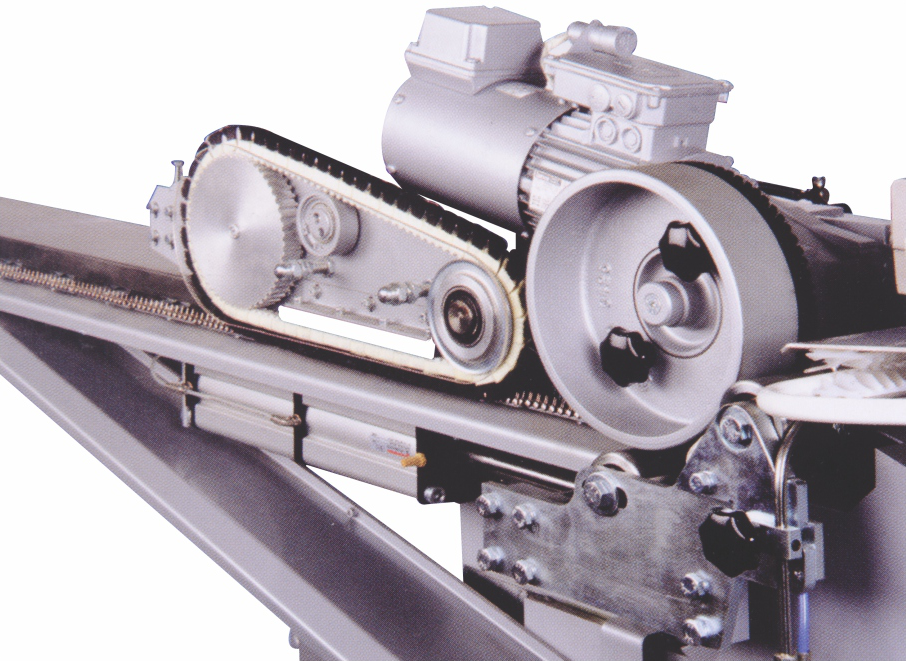

PINNING DEVICE

PINNING DEVICE WITH DRIVEN AFTER-PINNING BELT SYNCHRONISED DRIVE SYSTEMS FOR EFFICIENT PINNING AND RELIABLE AFTER-PINNING EVEN WITH LARGE OVERFEEDS AND HIGHLY ELASTIC FABRICS. PNEUMATIC OPERATION FOR LIFTING AND LOWERING IN PROCESS-OPTIMISED SEQUENCE. THE DRIVE IS SYNCHRONISED WITH THE DRIVE OF THE STENTER CHAIN, THUS PREVENTING ANY SHIFTING OF THE MESH STRUCTURE. LONG SERVICE LIFE OF THE BRUSH BELT AS IT IS NOT SUBJECTED TO FRICTION. SUITABLE FOR KNITTED FABRIC RANGES.
