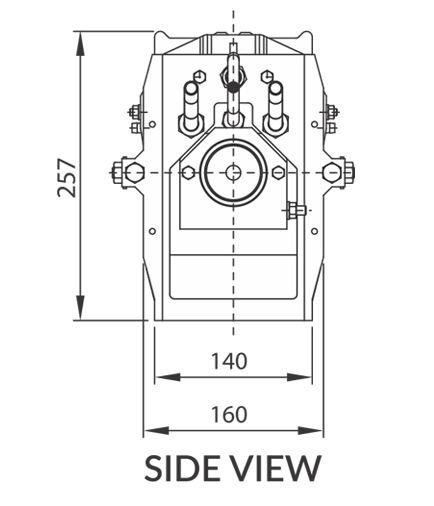

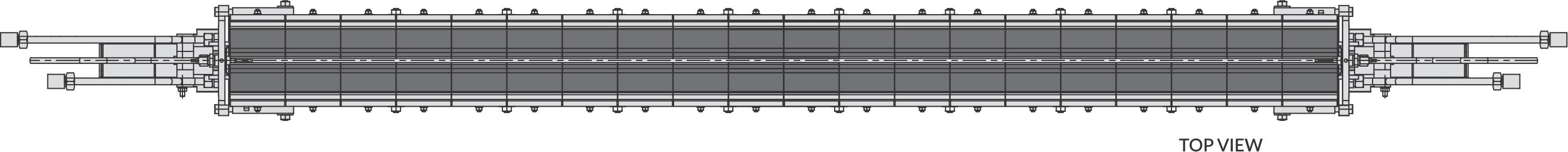

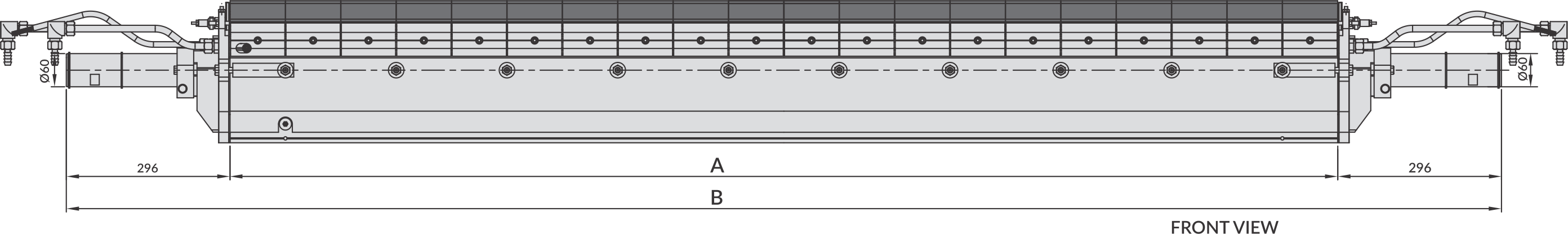

| BURNER WIDTH | W/W | A | B |
|---|---|---|---|
| 1800 mm | 1600 mm | 1800 | 2392 |
| 2000 mm | 1800 mm | 2000 | 2592 |
| 2200 mm | 2000 mm | 2200 | 2792 |
| 2400 mm | 2200 mm | 2400 | 2992 |
| 2600 mm | 2400 mm | 2600 | 3192 |
| 2800 mm | 2600 mm | 2800 | 3392 |
| 3000 mm | 2800 mm | 3000 | 3592 |
| 3200 mm | 3000 mm | 3200 | 3792 |
| 3400 mm | 3200 mm | 3400 | 3992 |
| 3600 mm | 3400 mm | 3600 | 4192 |

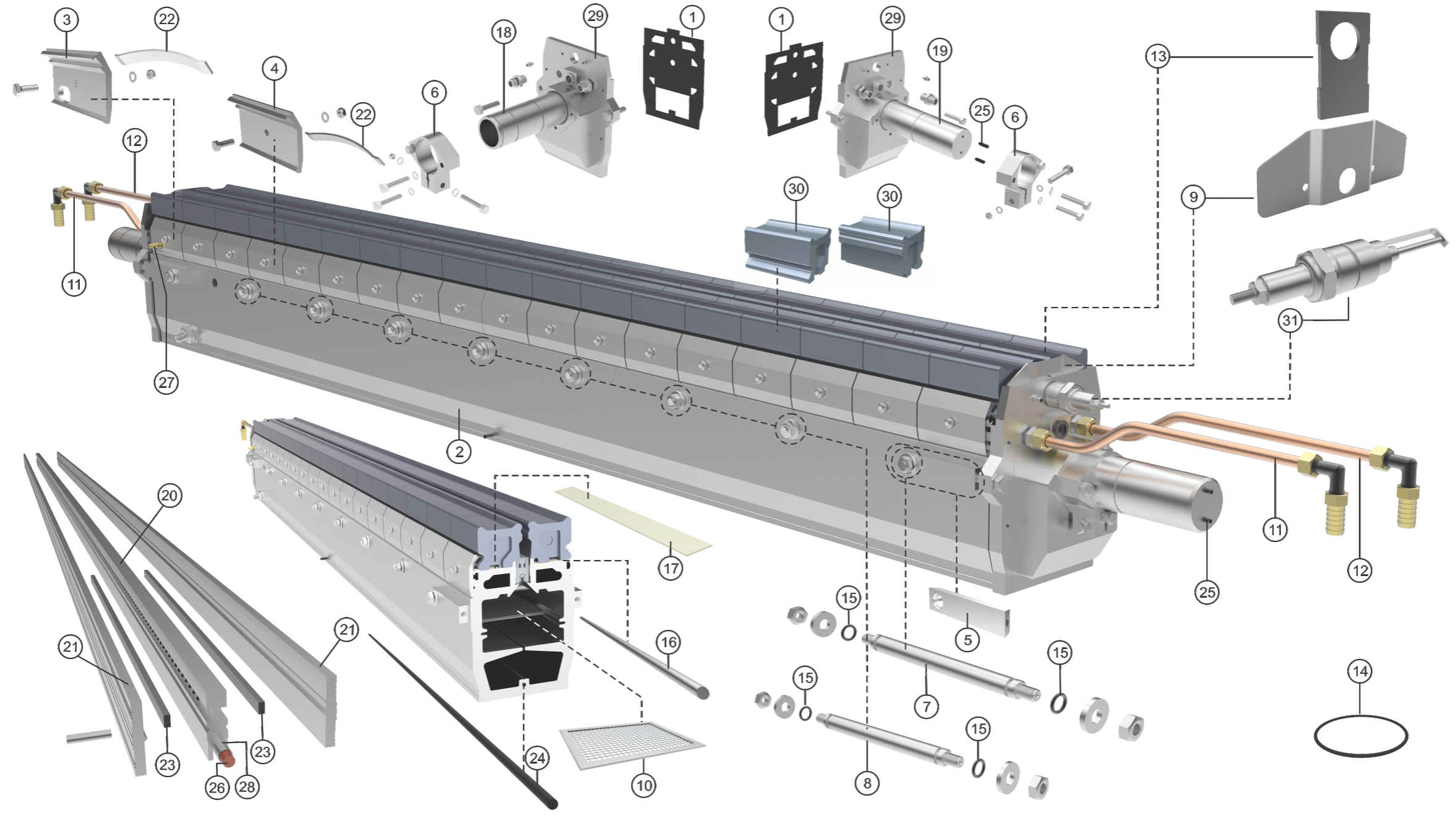

| POS. NO. | DESCRIPTION OF ITEMS | QUANTITY |
|---|---|---|
| 1 | FLANGE GASKET | 2 |
| 2 | BURNER BODY | 2 |
| 3 | CLAMP PLATE (WITH SLOT) | 2 |
| 4 | CLAMP PLATE (WITHOUT SLOT) | 34 |
| 5 | SUPPORT (25x15x110) | 4 |
| 6 | FIXING FLANGE | 2 |
| 7 | THREADED BOLT SHORT | 7 |
| 8 | THREADED BOLT LONG | 2 |
| 9 | FLAME SHIELDING PLATE | 2 |
| 10 | FLAT FILTER | 18 |
| 11 | INLET PIPE SMALL | 2 |
| 12 | INLET PIPE LONG | 2 |
| 13 | SEALING SET | 2 |
| 14 | CFT 'O' RING | 2 |
| 15 | O' RING (I.D.11 x Ø2.5) | 18 |
| 16 | ROUND ROD (Ø3x200) | 18 |
| 17 | SUPERWOOL ISOLATION STRIP (39x2x400) | - |
| 18 | SHAFT END - 1 | 1 |
| 19 | SHAFT END - 2 | 1 |
| 20 | BURNER MIDDLE RAIL (33.5x10x1796) | 1 |
| 21 | BURNER SIDE RAIL (36x7x1796) | 2 |
| 22 | SPRING STEEL STRIP | 18 |
| 23 | GASKET (3x6x285) | 2 |
| 24 | RUBBER CORD (Ø6x1800) | 1 |
| 25 | GRUB SCREW (M8x25) | 2 |
| 26 | SILICON RUBBER CORD FOR GAS SPRING | 1 |
| 27 | VENT SCREW - 1/8" | 1 |
| 28 | SPRING L-285 | 1 |
| 29 | BURNER FLANGE | 2 |
| 30 | BRICKS | 36 |
| 31 | SPARK PLUG | 1 |
