COMPLETE SOLUTION FROM ONE SOURCE....

TRANSPORT CHAINS / SYSTEMS
PIN BAR CARRIERS
PIN LINKS
CLIPS
PIN - CLIPS ( CLIP COMBINED )
PIN PLATE / PIN BARS
OPENERS / CLOSERS FOR STENTER CLIPS

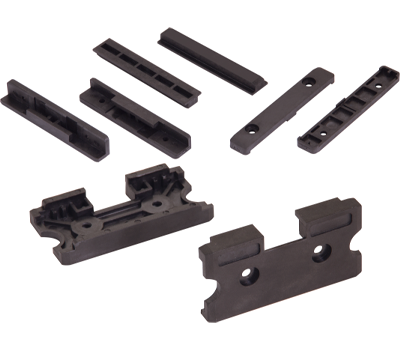

SLIDE RAILS, SLIDE PIECES, SLIDE BLOCKS
SPARES FOR OVERFEED SYSTEMS

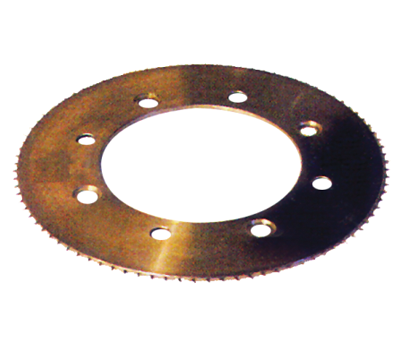

SPROCKET WHEELS FOR DRIVE & RETURN AND HUBS.
MONORAILS, WIDTH ADJUSTMENT SCREWS & NUTS
TIMING & DRIVE BELTS

HIGH TEMP. GRAPHITED / CARBON SLIDE RAILS
CHAMBER DOORS & DOOR SEALINGS
ROLLERS & RUBBER SLEEVED EXPANDERS ROLL COVERINGS, TAKE UP STRIPS, ANTI SLIP TAPES, FILLERS OF VARIOUS STYLES SIZES.
PNEUMATIC CLOTH GUIDERS EQ. TO E+L KF2020 & SPARES, & WELL ACCEPTED CLOTH GUIDERS, UNCURLERS, WEB GUIDING EQUIPMENTS.
ALL STANDARD & GENERAL RECOMMENDED SPARES & EQUIPMENTS OF MECHANICAL REQUIRED

SPECIAL APPLICATIONS

MANY OF OUR PRODUCTS ARE NOT SHOWN IN THIS CATALOGUE AS THEY ARE ONE -OFF ARTICLES ORDERED BY OUR CUSTOMERS.

THEY ARE EITHER MODIFIED VERSIONS OF OUR STANDARD ITEMS OR CUSTOM-BUILT ARTICLES WHICH ARE DESIGNED FROM SCRATCH IN ORDER TO FULFILL OUR CUSTOMER'S REQUIREMENTS IN TERMS OF AVAILABLE SPACE OR SPECIFIC OPERATING CONDITIONS.

GIVE US YOUR SPECIFICATIONS AND OUR ENGINEERING AND DEVELOPMENT DEPARTMENT WILL PROVIDE YOU WITH A SUITABLE TECHNICAL SOLUTION.

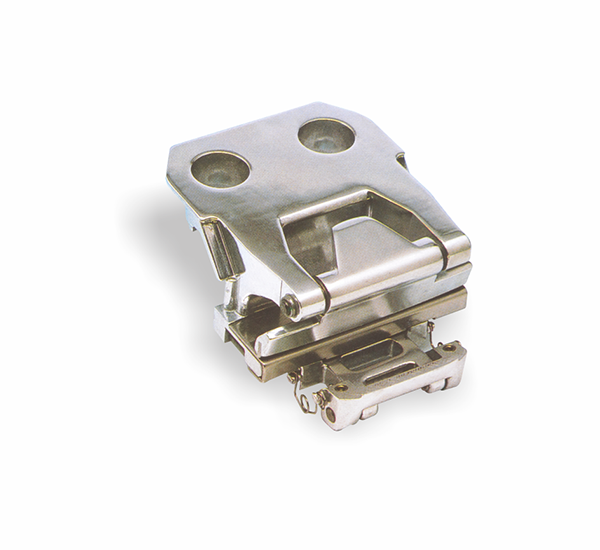

COMBINED PIN CLIP WITH
ROLLER FEELER

SUITABLE FOR STENTER FRAME
TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE A
VERTICAL GUIDE EDGE IS
INTEGRANT PART OF CLIP BODY.

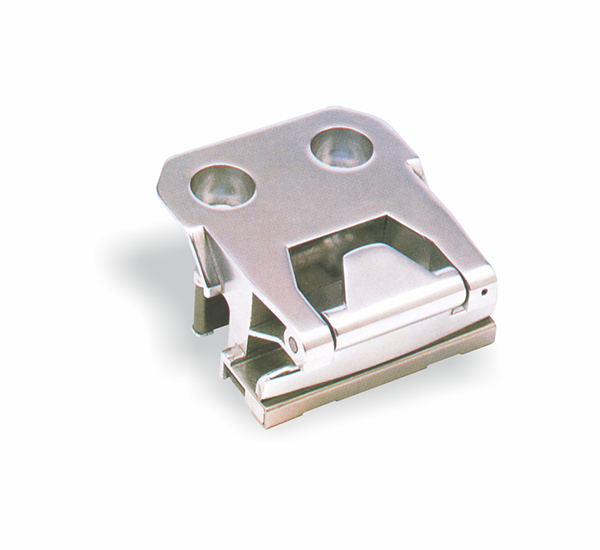

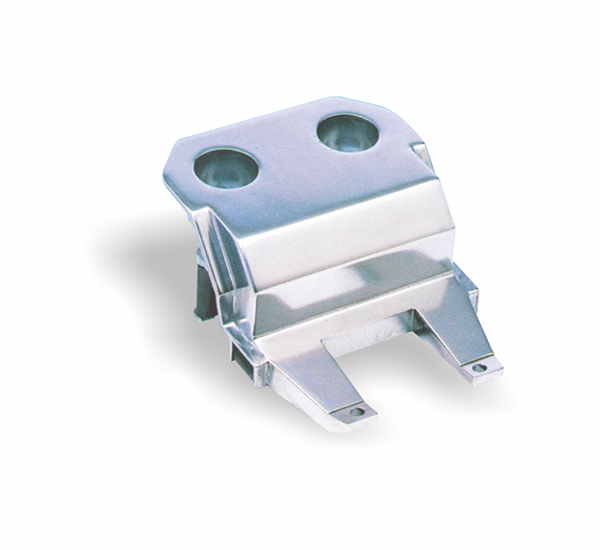

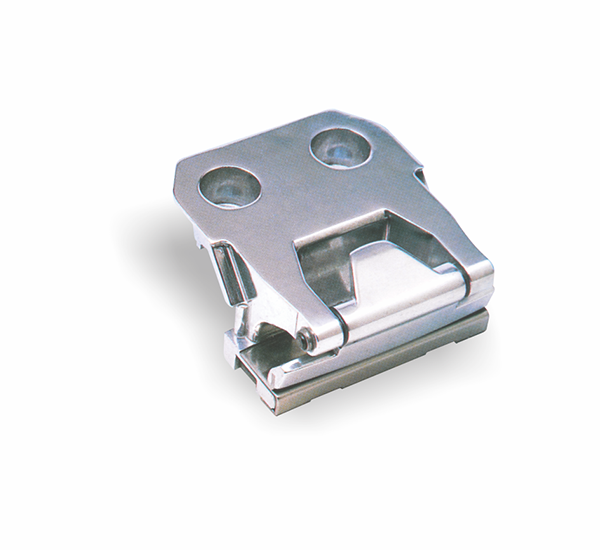

CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME
TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE B
VERTICAL GUIDE EDGE IS
INTEGRANT PART OF CLIP BODY.

CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME
TYPE: BRUCKNER.

VERTICAL GUIDE EDGE IS
INTEGRANT PART OF CLIP BODY.

CLIP WITH ROLLER FEELER

SUITABLE FOR STENTER FRAME
TYPE: BRUCKNER.

VERTICAL GUIDE PLATE
(ANGULAR IRON)
IS COMPONENT PART OF THE
TRANSPORT CHAIN.

PIN LINK
ROLLER FEELER

SUITABLE FOR STENTER FRAME
TYPE: BRUCKNER.

VERTICAL GUIDE EDGES IS
INTEGRANT PART OF CLIP BODY

COMBINED PIN CLIP WITH
ROLLER FEELER

SUITABLE FOR STENTER FRAME
TYPE: BRUCKNER.

PIN PLATE CARRIER TYPE A
VERTICAL GUIDE PLATE (ANGULAR IRON)
IS COMPONENT PART OF THE
TRANSPORT CHAIN

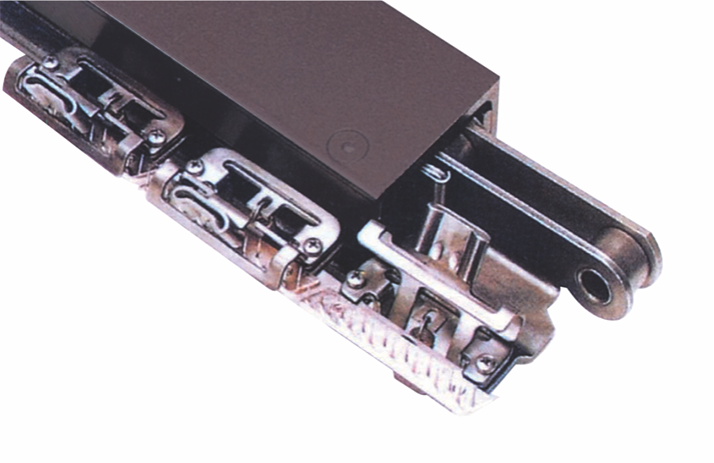

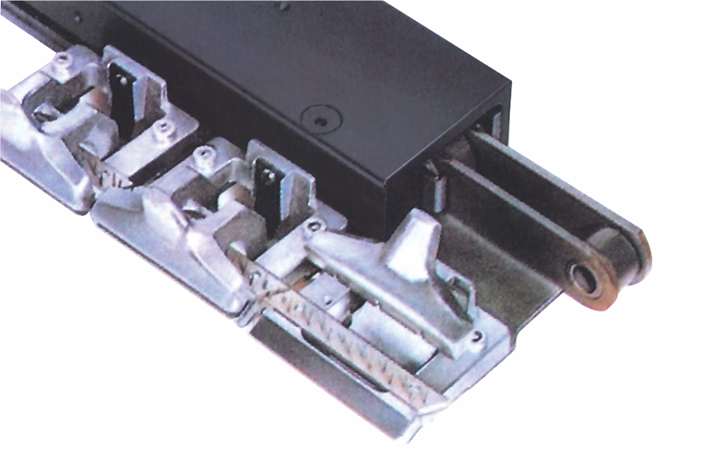

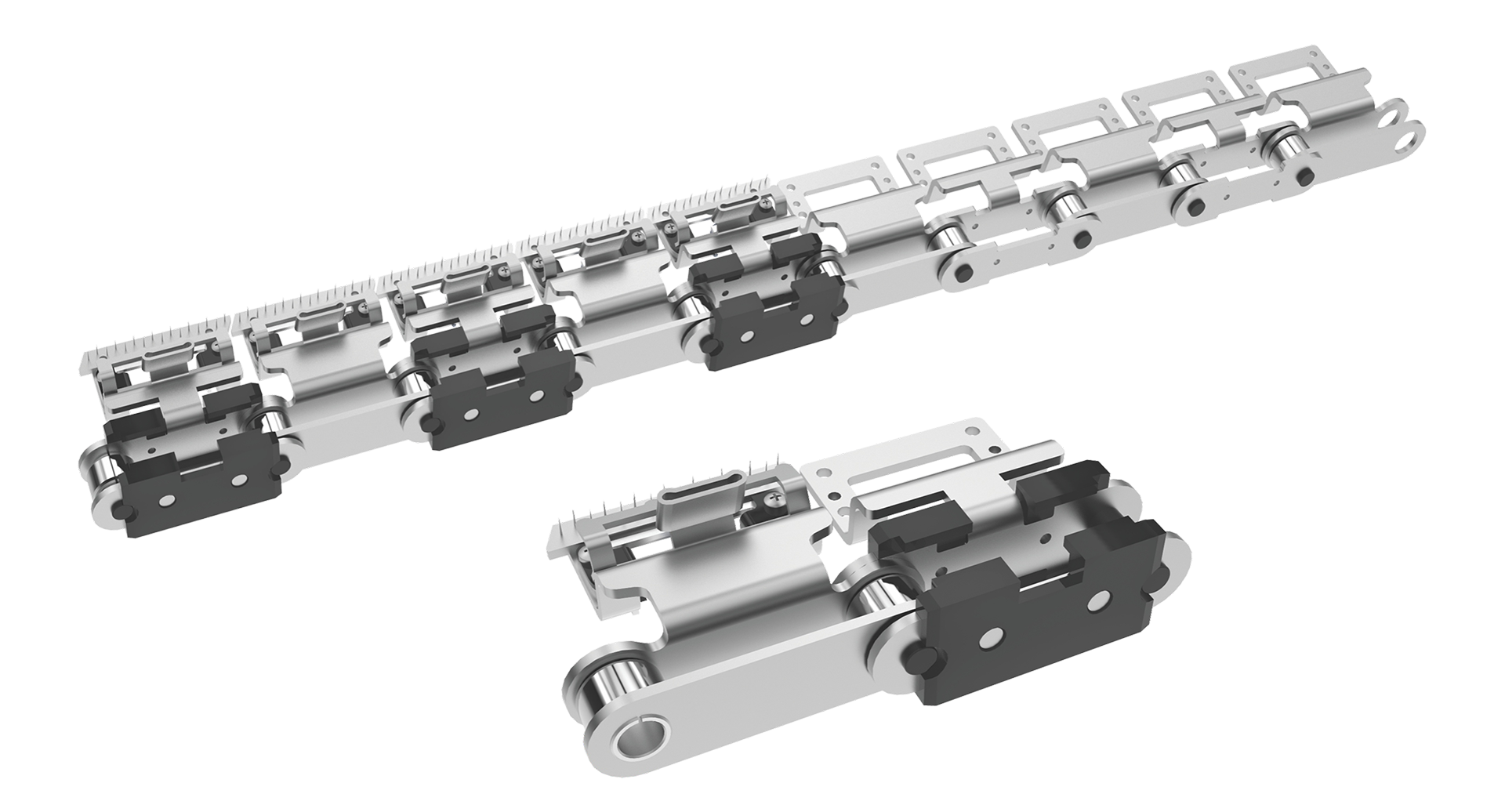

STENTER CHAIN & SPARE PARTS
EQ. TO FIT AGAINST ‘BRUCKNER’ STAR-DUR ( SK 999)

‘BRUCKNER’ STENTER CHAIN,
EQ. TO STAR-ROLL, MODEL NO:- SK976

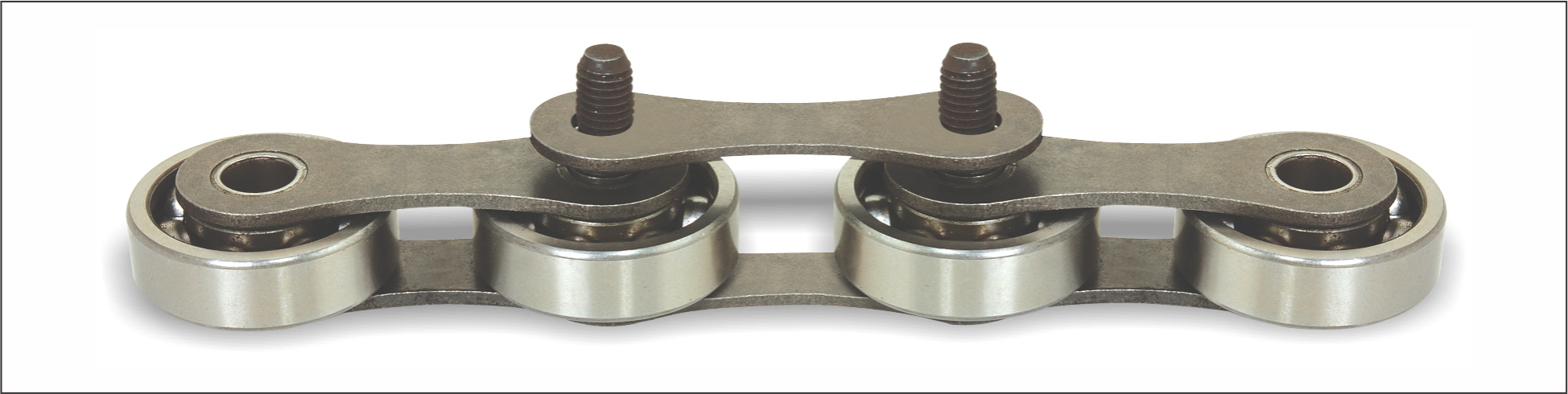

STENTER CHAIN FOR SILENT OPERATION
SUITABLE FOR TYPE: ‘BRUCKNER’

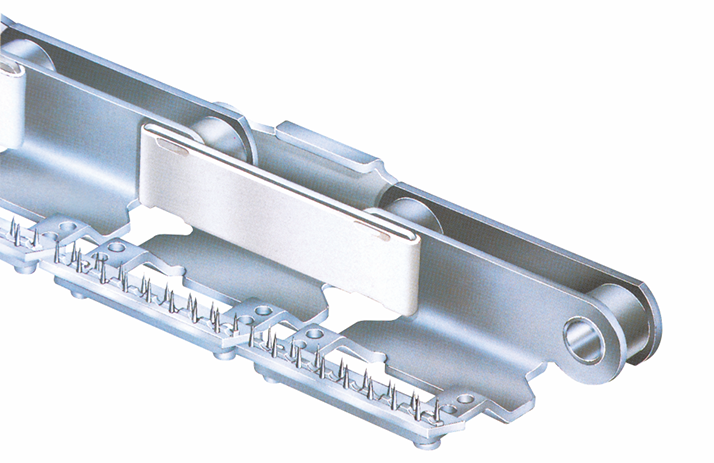

VERTICAL RETURN GLIDING CHAIN
WITH PIN BAR CARRIERS

VERTICAL RETURN GLIDING CHAIN IN
SPECIAL DESIGN WITH
DE-PINNING PROTECTION CLAMPS

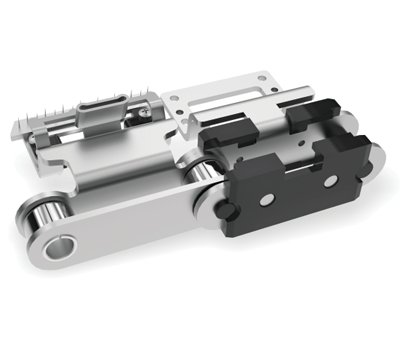

VERTICAL RETURN GLIDING CHAIN WITH
COMBINED PIN/HAMMER CLIP

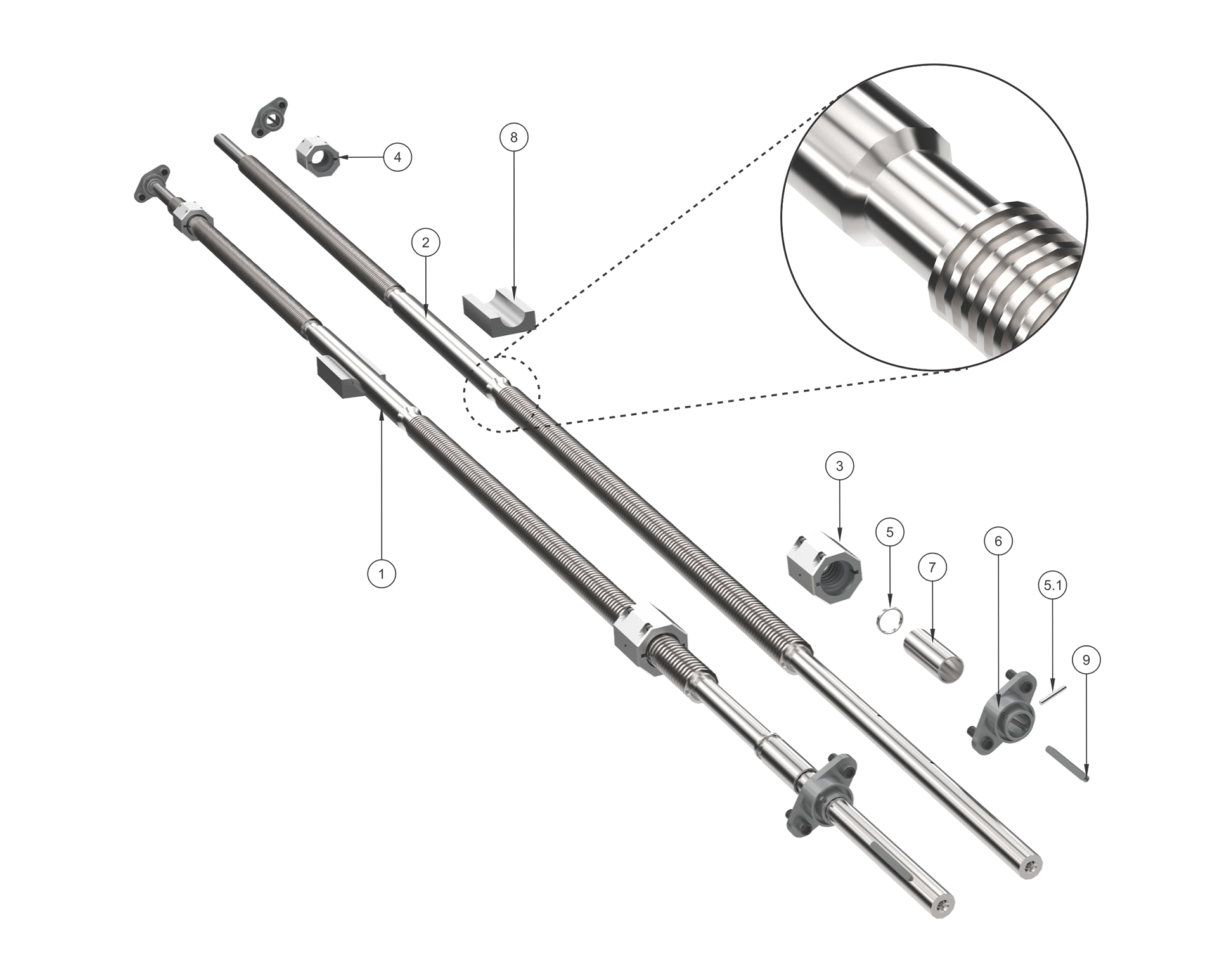

SPARE PARTS FOR WIDTH ADJUSTMENT SPINDLE
EQ. TO ‘BRUCKNER’ WIDTH ADJUSTMENT SPINDLE

EQ TO POS. NO.	EQ. TO FIT AGAINST ORDERING PART NO.	QTY.	DESCRIPTION OF ITEMS
1	- - - -	1	WIDTH ADJUSTMENT SPINDLE ASSEMBLY
2	49296-991	1	WIDTH ADJUSTMENT SPINDLE TR. 45x6
	70222-443	1	SLEEVE COUPLING B=35H7x150
3	70105-917 / 72314-268	1	SPINDLE NUT DIVIDED CAST MOUNT TR 45 x 16 DOUBLE THREADED
	72305-613	1	DIVIDED SPINDLE NUT WITH TORLON INSERT LEFT HAND THREAD
	72305-603	1	TORLON INSERT FOR DIVIDED SPINDLE NUT L/H THREAD
4	70105-920	1	DIVIDED SPINDLE NUT LEFT SIDE
	72305-612	1	DIVIDED SPINDLE NUT WITH TORLON INSERT RIGHT HAND THREAD
	72305-602	1	TORLON INSERT FOR DIVIDED SPINDLE NUT R/H THREAD
5	72230-197	2	ADJUSTING RING A 30 WITH BORE D=6
5.1	70072-724	2	TENSION PIN 6x45 A-ST
6	72275-688	2	FLANGE BEARING WITH HUB AND BUSHING 30/30
7	72253-557	1	BUSH D=36x31x82
8	72256-587	1	SUPPORT BEARING FOR WIDTH ADJUSTMENT SPINDLE
9	41190-829	1	ADJUSTING SPRING A8x7x80

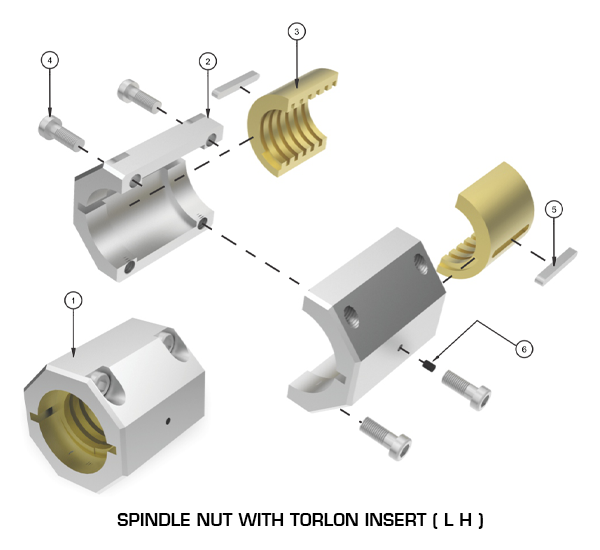

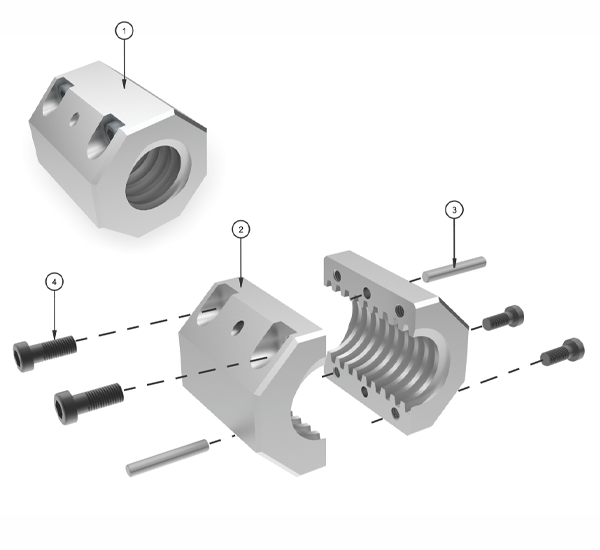

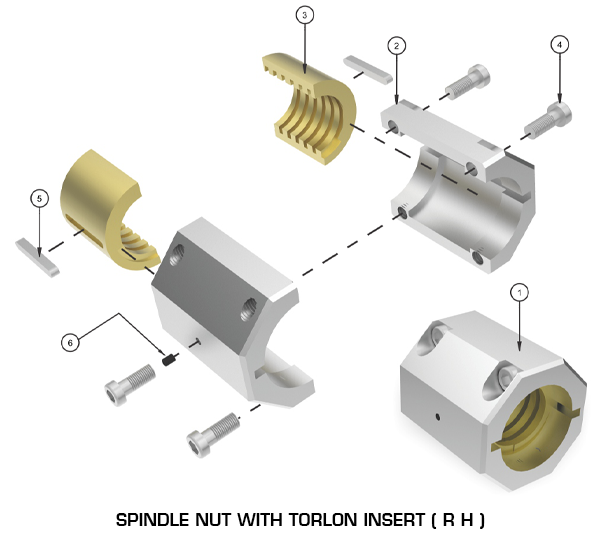

EQ. TO ‘BRUCKNER’ DIVIDED SPINDLE NUT

‘DIVIDED SPINDLE NUT WITH TORLON INSERT COMPLETE

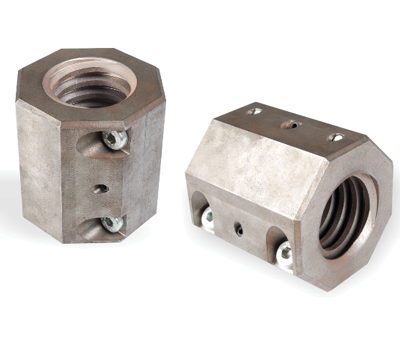

SPINDLE NUT DIVIDED CAST MOUNTTR 45 x 16 DOUBLE THREAD COMPLETE

SUITABLE FOR ALL TYPES OF STENTER FRAMES

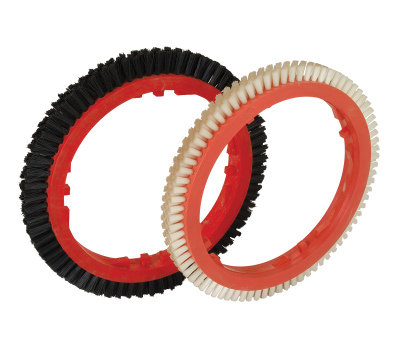

RING BRUSH FILLING MATERIAL

SUITED FOR DEWATERING AND FINISHING PROCESSES FOR WOVEN FABRIC.
FB-01: BLACK BRISTLE ( EXTRA HARD )
FB-02: GREY BRISTLE ( HARD )
FB-03: LIGHT BRISTLE (MEDIUM)
FB-04: PIG’S HAIR BRISTLE (SOFT)
FB-05: NYLON BRISTLE (Ø 0.30 X 1.00mm)
FB-06: BELT TYPE FOR KRANTZ & STENTEX

FB-01

FB-02

FB-03

FB-04

FB-05

FB-06

STRETCH YOUR FABRIC /
PROFIT WITH...

WORLD CLASS TEXTILE STENTER / TENTER CHAINS, CLIPS, PIN PLATES,
PIN BARS, MAJOR ASSEMBLIES, SPARE PARTS & ACCESSORIES...

SUITABLE FOR TYPE

‘FOURWENTS’ PRODUCT RANGE INCLUDES

STENTER CLIPS OF ALL TYPES, STANDARD OR TAILOR MADE.
MERCERISER CLIPS, LINKS OF ALL TYPES, STANDARD OR TAILOR MADE.
PIN LINKS, TRANSPORT CHAINS, CLIP BOTTOM CHAIN ASSEMBLIES.

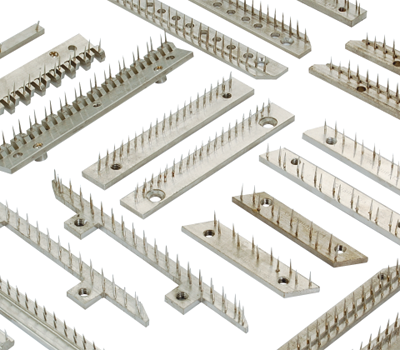

ALL TYPES OF STENTER PIN PLATES, PIN BARS, ALL POPULAR TYPES & SIZES.
ANY DESIGN MANUFACTURED FROM SAMPLES OR TECHNICAL DRAWINGS.
RING PINING BRUSHES, PIN CLIP - CLEANING BRUSHES.

OPENERS / CLOSER, FOR STENTER CLIPS.

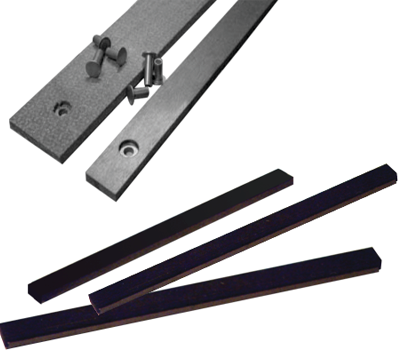

HIGH TEMPERATURE GRAPHITED / CARBON SLIDE RAIL.

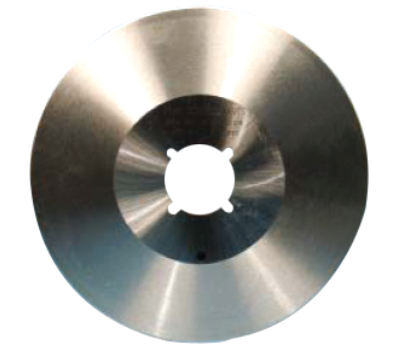

SLITTING BLADES IN HIGH SPEED STEELS.
SPARES FOR OVER FEED SYSTEMS.

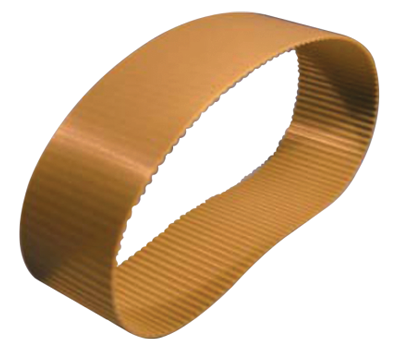

TIMING & DRIVE BELTS.
BLOWER FANS / IMPELLERs, COOLING ZONE AND EXHAUST FANS UNITS.
MAIN DRIVE GEAR BOX & SPARES.

OIL / STEAM RADIATORS / HEAT EXCHANGERS / HEATERS.
OVERFEED WHEELS, WIDTH ADJUSTMENT SCREWS & NUTS.
‘FOURWENTS’ WELL ACCEPTED CLOTH GUIDERS, UNCURLERS, WEB GUIDING EQUIPMENTS.
SPROCKET WHEELS FOR DRIVE & RETURN MADE OF HEAT TREATABLE STEEL WITH HARDNED SPROCKET SUITABLE FOR HIGH SPEED.

PNEUMATIC CLOTH GUIDERS EQ. TO E+L KF2020 & SPARES.
ROLLERS & RUBBER SLEEVED EXPANDERS.
ROLL COVERINGS, TAKE-UP STRIPS, ANTI-SLIP-TAPES, FILLERS OF VARIOUS STYLES & SIZES.
CHAMBER DOORS AND DOOR-SEALINGS.
ALL STANDARD & GENERAL RECOMMENDED SPARES & EQUIPMENTS OF MECHANICAL AS REQUIRED.
